Bluetooth Low Energy (BLE)

Collaborate with imec to take advantage of the newest improvements to today’s best-established low-power wireless technology.

BLE is the best-established low-power wireless technology on the market today –– built into virtually every smartphone and already indispensable for use cases ranging from unlocking your car to transmitting health data from a wearable or even implantable device. All without needing to worry about privacy or security.

As AI is increasingly woven into our daily lives, e.g. by means of AI companions such as AI glasses, BLE will remain a crucial technology for low-power data transfer such as AI voice assistance. Especially since BLE is continually being expanded with new capabilities:

  • Bluetooth channel sounding expands the current use cases to next-gen wireless secure access and proximity solutions. Examples are item finding, asset tracking, real-time location systems (RTLS) and indoor positioning systems (IPS).
  • Bluetooth Higher Data Throughput (HDT) will increase the maximum supported bitrate to 7.5 Mbps for faster data transfer, increased capacity, better energy efficiency and enhanced reliability.
  • Bluetooth Higher Bands expands Bluetooth into higher frequencies for higher data throughput, lower latency and better positioning accuracy.

Bluetooth HTD and Bluetooth Higher Bands may enable concurrent multiband operation, allowing multiple devices to connect simultaneously, with each device operating in its assigned frequencyband. Imec can enable this with highly integrated, ultra-low-power radio architectures that limit the power and area overhead of supporting multiple bands.

Through continual innovations on both hardware and software levels, imec’s experts contribute to these advancements for Bluetooth HTD and Bluetooth Higher Bands in innovative low-power radio designs.

For use cases that require higher-throughput low-power data transfers (above 7.5 Mbps) and/or even more precise positioning, ultra-wideband (UWB) is a promising alternative.

Get in touch

Low-power wireless for AI

Next-gen BLE is an important enabler for AI-powered gadgets that are entering the market.

Bluetooth Low Energy hardware design

Imec’s BLE radio designs and IP enable an on-chip transceiver. That’s ideal for IoT implementations because of its best-in-class performance at the world’s lowest power consumption.

Its key features are:

  • multi-standard multi-band 2.4 GHz and 5/6 GHz analog front-end
  • higher data rates (7.5 Mbps with possibility of extending up to 15 Mbps)
  • low energy per bit
  • advanced digital transmitter
  • low cost
  • ultra-low power consumption
  • best-in-class sensitivity
  • robustness to interference
  • designed in TSMC 22nm ULP for 0.8V nominal supply

Download the leaflet for imec's 40nm BLE radio

Localization solution

Imec’s up-to-10-cm-accurate and secure localization solution based on BLE.

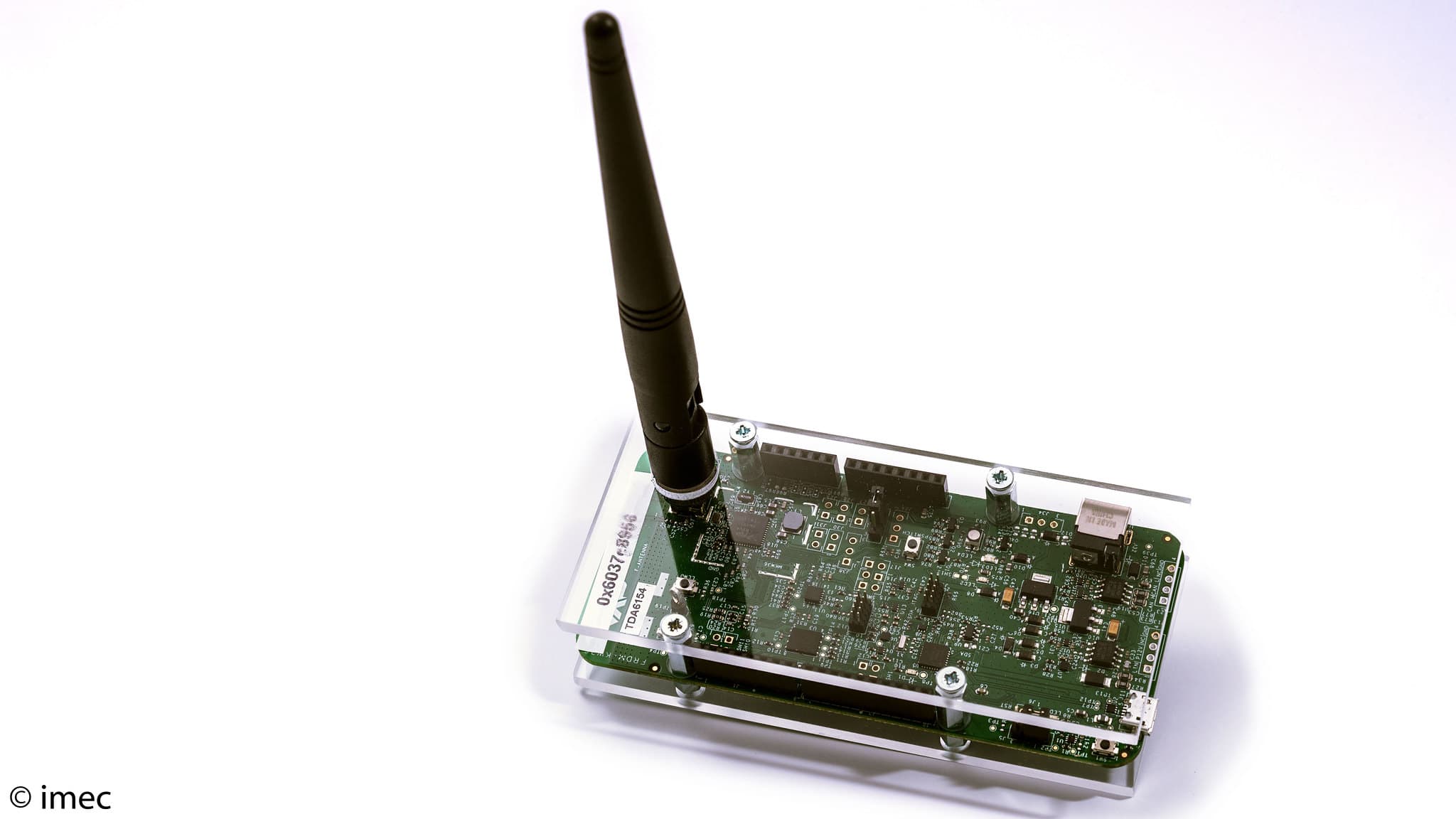

This BLE design and IP is accessible through licensing. Evaluation boards are available upon your request.

Do you want additional assistance in developing your IoT hardware solution? We are ready to assist you with:

  • system and IC implementation
  • antenna design with regard to form factor, materials, and packaging
  • design, prototyping, and low-volume manufacturing of custom low-power radio ASICs
  • access to high-volume production by our foundry partners

Get in touch

Bluetooth Low Energy algorithms: high-accuracy distance measurement/channel sounding

Current BLE-ranging solutions only reach an accuracy of about 3 meters. They use the received signal strength (RSSI) method, which especially struggles in challenging (indoor) environments with lots of reflections.

Imec’s ranging solution uses a combination of a phase-based distance estimation protocol and advanced signal processing. This enables the system to separate line-of-sight from multipath signals. And to thereby reach sub-meter accuracy – even up to 10 cm if multiple antennas are used.

imec localization improvement over typical performance

What’s more, imec’s secure distance bounding protocol ensures that it’s impossible to falsify the proximity of a device. Which means so-called location spoofing or relay attacks can be averted.

Key features of imec’s BLE algorithms for IoT applications:

  • up to 10-cm ranging accuracy
  • suitable for standard 2.4 GHz radio
  • secured against relay attacks
  • requires low processing power

Download the leaflet to explore the details. Or contact us to discuss your challenge.
