Infrared and 3D sensing technology

From AR/VR to autonomous driving and face recognition: tomorrow’s consumer applications need affordable imaging technologies that transcend the visible spectrum. That’s why imec’s Pixel Technology Explore activity is looking into innovative routes towards low-cost, high-resolution infrared sensors and 3D imaging.

Watch movie

CMOS technology has made visible imaging compact, low-power and affordable. Just about every smartphone now harbors a digital camera that’s capable of professional photography.

But the needs of the market are changing. Applications such as augmented reality and face recognition, autonomous driving and food scanning require a shift from imaging to sensing – from taking a picture to acquiring information.

The challenge is to bring these new imaging applications within reach of the consumer technology market, by lowering their cost without compromising their resolution. This is the goal of imec’s Pixel Technology Explore research activities, which break new ground in NIR/SWIR sensing and 3D imaging.

Imec intends to develop technologies for companies with a roadmap in innovative image sensors, cameras and smart imaging applications.

Accept marketing-cookies to view this content.

Cookie settings

Near-infrared (NIR) and short-wave infrared (SWIR) sensing technology

The sensitivity range of silicon-based sensors is fundamentally limited to below 1100 nm. That’s why infrared imaging has been dominated by III-V detectors that are flip-chip-bonded to silicon readout circuits. This both drives up the costs and limits the pixel pitch and resolution.

The Pixel Technology Explore activity is looking at two methods for cost-effective uncooled IR detection:

thin film on silicon – Materials such as organic and colloidal quantum dots offer low-cost synthesis, compatibility with a variety of substrates and processing feasibility on a large area. This article gives you an in-depth view.
hybrid infrared imagers – Both III-V hetero-epitaxy on silicon and III-V material transfer on silicon are compatible with processing in a silicon wafer fab and reduce the manufacturing costs of IR sensors.

In-depth article: pioneering advances in semiconductor design for sensing light beyond the visible

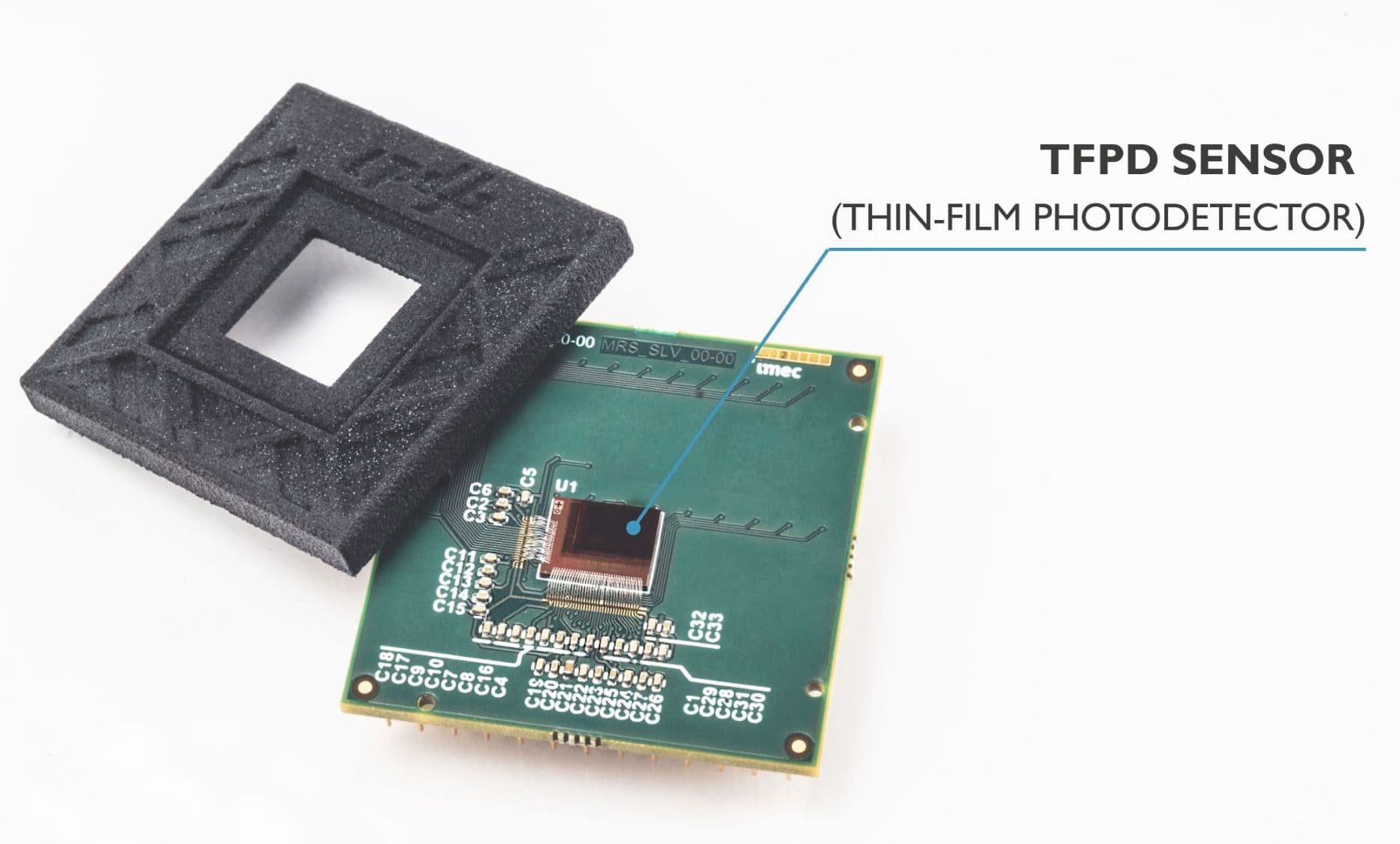

Watch this demonstration of SWIR imaging. The imec QDPD camera captures the image through the silicon wafer:

Accept marketing-cookies to view this content.

Cookie settings

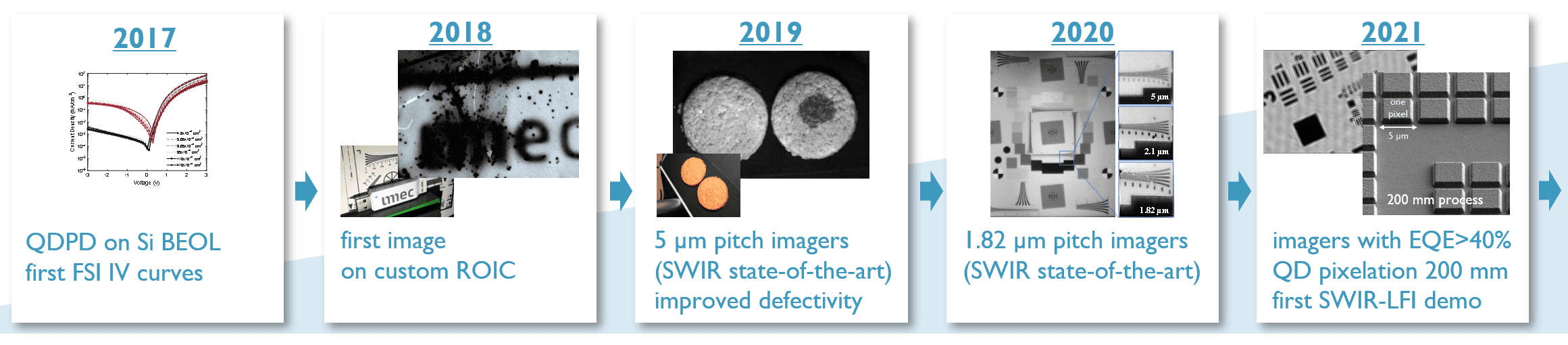

Historic overview of imec's research on the use of thin-film photodector (TFPD) technology to enable infrared imaging.

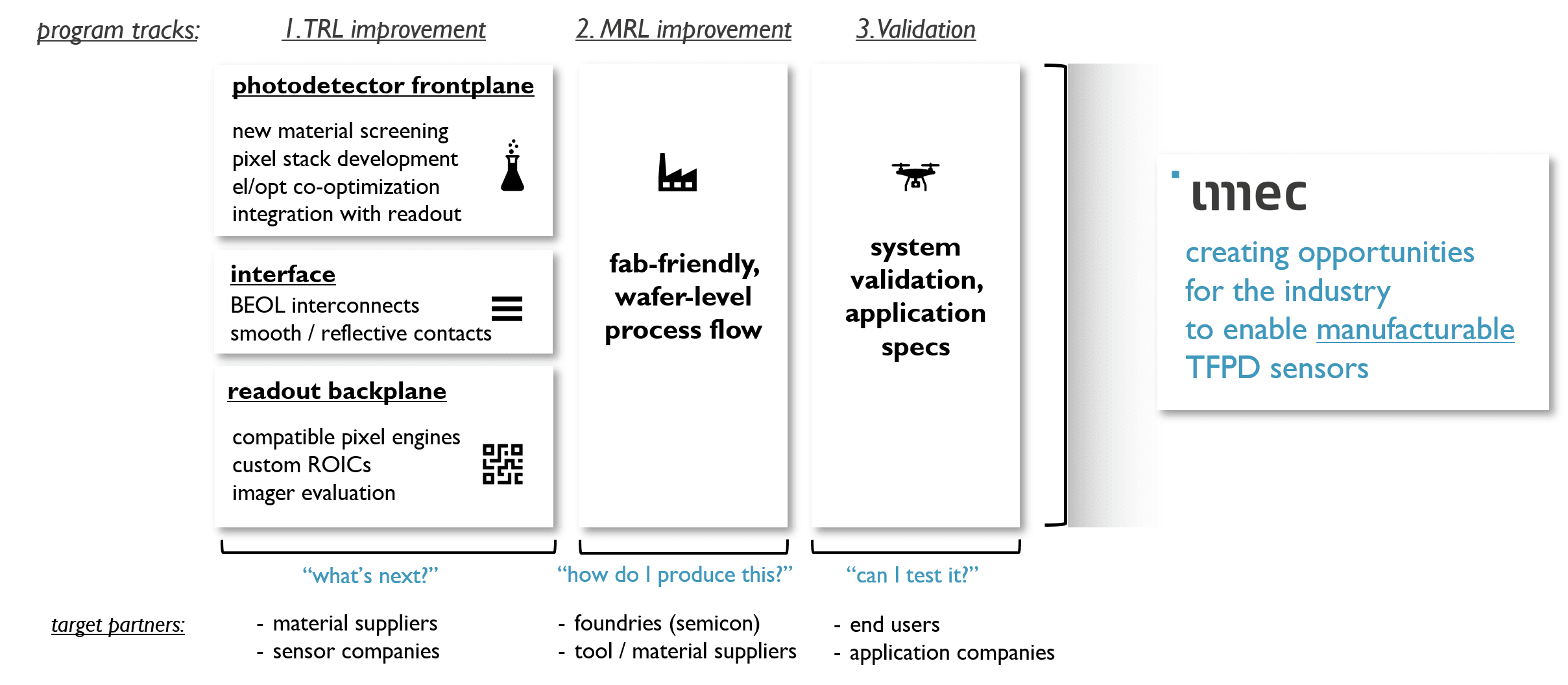

Program tracks of imec's research into manufacturable TFPD sensors.

Silicon-based pixels for 3D sensing

Making use of the third dimension is another way of extending picture content beyond visible photography. For 3D sensing, imec is exploring these research avenues:

IR laser dot projection – This is addressed by the research topics above that look into uncooled IR detection.
Continuous Wave (indirect) Time-of-Flight (CW-ToF) – This also relies on an NIR laser pulse but measures the reflected light phase difference within each pixel to get access to distance.
Direct Time-of-Flight (D-ToF) – This combines an NIR laser pulse with high speed Single Photon Avalanche Diodes (SPAD) that measure the time for a photon to travel between the laser source and the imager.

Want to become our partner in developing new infrared sensing technologies?

As our partner in the Pixel Technology Explore activity, you’re provided with:

TCAD/optical simulations and pixel architectures
device demonstrators with analog readout
process integration at die and wafer level (200/300 mm)
PCM testing and pixel characterization (PTC, QE, MTF, ...)
material characterization (TEM, SEM, AFM, ...)

We can also assist you with the development of prototypes. Here, you can take advantage of imec’s unique combination of expertise regarding imaging R&D – from material research all the way up to camera integration.
